Cycle Optimization

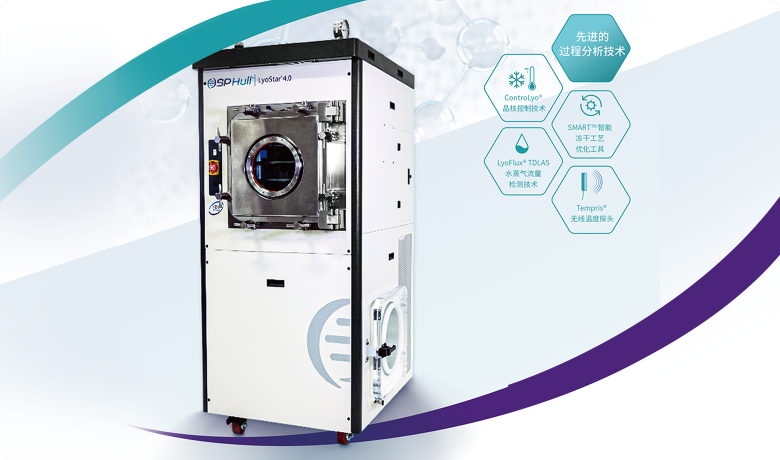

The SP Hull LyoStar 4.0 designed and built to enhance speed to market of biopharmaceutical products and represents a significant advancement in freeze dryer engineering. Based on a full-scale production freeze dryer to support rapid-scale-up, LyoStar 4.0 is a pilot-scale lyophilizer offering superior shelf mapping, rapid shelf freezing, unmatched process accuracy and reliability.

It also includes a cutting-edge suite of Process Analytical Technology (PAT) tools augmenting SP's Line of Sight™ suite of technologies which overcomes critical lyophilization challenges during development, scale‑up and manufacturing of a biologic. In addition, SP's new freeze dryer uses an eco-friendlier refrigerant gas, which reduces the carbon footprint involved in lyophilization.

Ideal for rapid lyophilization cycle development, optimization and scale-up, the LyoStar 4.0 incorporates the very latest innovations in freeze-drying technology to protect valuable product by ensuring precise process control and robust reliability. To enable this, LyoStar 4.0 has a number of sophisticated, upgradeable PAT tools including:
- LyoFlux® TDLAS Sensors for vapor mass flow measurement;
- AutoMTM/SMART™ Freeze Dryer Technology, a primary drying cycle optimization tool;
- ControLyo® Nucleation Technology giving pinpoint control of freezing point;
- A 3D modelling package for computational fluid dynamics and process monitoring;
- Tempris® Wireless Sensors for real-time product temperature measurement.

Want to know more? Inquire now

Faster Freeze-Drying

Lower R&D Cost

Improved Cake Quality and Appearance

Reduced Reconstitution Times

CASE 1

CASE 2

CASE 3

CASE 1
Pantoprazole sodium for injection: inconsistent with the original drug

Problem description：Moisture content is not up to standard, poor cake appearance
Optimization solution：ControLyo® Nucleation Technology

Optimization results：
1) The freeze-drying time is reduced from 32 hours to 23 hours, which is 28% shorter
2) The quality of the cake is greatly improved, very uniform, consistent with the original drug
3) The cake appearance and looseness are very good, consistent with the original research
4) The lyophilized sample dissolves quickly and has better resolubility.
5) The moisture is dried more thoroughly, in line with the requirements of the original drug
